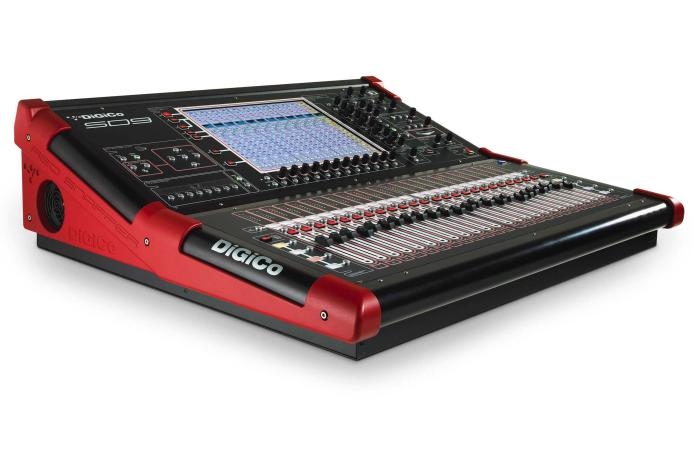

DiGiCo SD9
Product Overview:

Live Digital Console with Stealth Digital Processing™

DiGiCo SD9: “It's off the hook.....”

The SD9 is a super-flexible, complete integrated system powered by Stealth Digital Processing and floating point Super FPGA technology. This lightweight, small-footprint console was designed with multiple applications in mind therefore is equally suited to life on the road or as part of any fixed installation, be it a theatre, conference centre, house of worship or school. The SD9 provides outstanding performance at a very competitive price point.

Scratching the surface

The SD9 features 24 touch-sensitive motorised faders and benefits from quick access function buttons for faster response times. At the heart of the console's worksurface is a 15-inch, high resolution TFT LCD touch screen with backlit display.

In addition, the SD9 benefits from dedicated multi-function control knobs and electronic labelling.

What's under the hood?

The SD9 boasts 48 Flexi Channels (configurable as either mono or stereo) at 48kHz/96kHz, which is the equivalent of 96 channels of full DSP processing.

Standard channel processing, whether inputs or outputs, includes Channel Delay, Single and Multi Channel Presets, Dual insert points, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, Dual insert points, DiGiCo's DYN 1 (Compressor, De-esser or assignable Multi Channel Compressor) and DYN 2 (Gate, Compressor or Ducker).

The console also benefits from eight Dynamic EQ processors, all of which can be assigned to any of the input or output channels. These powerful processors offer Dynamic processing on each of the four standard parametric bands, plus there are also eight assignable Multiband Compressors and eight DiGiTubes; and no matter how the console is set up, the user won't lose any resources, as all channels are equipped to provide the same high quality signal path and feature set.

The master section incorporates 16 gangable 32-band graphic EQs, eight stereo effects (selectable from a palette of 33), and eight control groups (VCAs); and using snapshots, engineers can now switch between complete configurations in any live environment easier than ever before, be it at rehearsals, during system setup, or even at a show.

We've also included 24 Flexi busses (mono or stereo), all of which are assignable as mono/stereo groups or auxiliary busses; and in addition to these busses, for further configurability, we've provided a 12 x 8 output matrix, dual solo busses, and a Master buss. Essentially, users have the equivalent of 47 busses of DSP at their disposal.

Unlike all other digital console manufacturers, you don't lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.

I/O

The SD9 has a vast Local I/O section including eight mic inputs, eight line outs, four mono AES/EBU, one MADI port, and two dedicated D-Rack Ports.

The D-Rack is a 32-input, eight-output remote I/O rack which comes as standard with the SD9 with the option to increase to 16 outputs if desired. Users can also connect a second D-Rack (as with the Rack Pack combination) which will provide a total of 72 mic inputs.

There is also a factory fit Optocore option which allows for connectivity to all DiGiCo racks and consoles in a redundant loop.

In addition, there is an optional DiGiCo SoundGrid module which can be fitted to both engines for full redundancy when linked to two external PC servers such as SoundGrids or DiGiGrids. This provides the user with instant access to 32 fully integrated low-latency Waves stereo Multi Racks, each with the ability to have up to eight plugins per rack. That's 128 I/O - and as you'd expect from DiGiCo, this is all additional I/O.

All Waves compatible plugins are pre-loaded, and as this is integral within the console, you have the added advantage of touch screen control; and all shapshots and session files are saved within the console.

Main Features

  • 48 Flexi Input Channels
  • 24 Flexi Aux / Sub-Group Busses
  • LR/LCR Master Bus
  • 12 x 8 Full Processing Matrix
  • 2 Solo
  • 8 Dynamic Equalizers
  • 8 DiGiTuBes
  • 8 Multiband Compressors
  • 8 Digital FX
  • 16 Graphic Equalizers
  • Optional Waves Integration
  • 48/96kHz Sample Rate
  • Factory Order only Optics
  • Optional Application Specific Software: Theater or Broadcast

Specifications

General Specifications

  • Faders:: 24 x 100mm Touch-sensitive, motorised
  • Screens:: 1 x 15” (38cm) LCD high - resolution touch screen
  • Meters:: 24 x 8-Segment LED bargraph
  • Input Channels:: 48 Flexi channels Mono or Stereo
  • Busses:: 24 Flexi* (full processing**)
  • Solo Busses: 2 Stereo Busses
  • Matrix: 12 x 8 Matrix (additional to busses above)
  • Control Groups: 8, Selectable for VCA-style, Moving Fader, Mute Group
  • Graphic EQ: 16 x 32-band, Gain +/- 12dB
  • Internal FX: 8 Stereo FX Processors
  • Local I/O: 8 x Mic/Line I/O, 4 x AES/EBU: I/O (Mono)
  • MADI Interface: In / Out /
  • Optic Interface: Optocore (Optional Factory Fit Only)
  • MIDI Interface: In / Out / Thru
  • VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
  • USB Ports (3): USB 2
  • Light Connection (2): XLR3 1.2 – 12V
  • Ext Sync: Word Clock, MADI
  • Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
  • GPI: 2 x 1/4” Jack TF
  • GPO: 2 x 1/4” Jack TF
  • SD9 Dimensions: 878mm (w) x 785mm (d) x 262mm (h)
  • SD9 Weight: 36Kg (105Kg with optional flightcase)
  • SD9 Flightcase: 1063mm (w) x 1131mm (h) x 472mm (d) (Optional):
  • SD9 Power: 90-264 VAC, 47-63Hz Auto Sensing. 208 watts, 232VA Requirements
  • Redundancy: Internal PSU x 2 (Optional)

Audio Specification

  • Sample Rate: 48kHz or 96kHz
  • Processing Delay: 2ms Typical @ 48k (48 Stereo Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @ 96k
  • Internal Processing: Up to 40-bit, Floating Point
  • A>D & D>A: 24-bit Converter Bit Depth
  • Frequency Response: +/- 0.6dB (20Hz – 20kHz)
  • THD: <0.05% @ Unity Gain,: 10dB Input @ 1kHz
  • Channel Seperation: Better Than 90dB: (40Hz – 15kHz)
  • Residual Output: <90dBu Typical
  • Noise: (20Hz - 20kHz)
  • Microphone Input: Better Than -126dB: Equivalent Noise
  • Maximum Output Level: +22dBu
  • Maximum Input Level: +22dBu

Processing Channel Specification
Input Channel

  • Name: User-Defined / Presets
  • Channel Selection: Mono / Stereo / Multi
  • Input Routing: Main & Alternate Input
  • Analogue Gain: -20 to +60dB
  • Phase: Normal / Reverse
  • Digital Trim: -40 to +40dB
  • Delay: >1 Sec (Coarse & Fine Control)
  • DiGiTuBe: Drive 0.01 - 50.0
  • Bias 0 - 6
  • LPF: 20 – 20kHz, 24dB/Oct
  • HPF: 20 – 20kHz, 24dB/Oct
  • Insert A: (Pre EQ/Dyn) On/Off
  • Equalisation: 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/
    Hi Shelf, Hi/Hishelf)
    On/Off
    Freq; 20 – 20kHz
    Gain; +/- 18dB
    Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
    Dynamic EQ On/Off
    Over/Under
    Band On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
  • Dynamics 1: Single or Multiband (3-Band)

    Compressor: On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
    Gain; 0 to +40dB with
    Autogain Option
    Link; Any Channel/Buss
    Hi Crossover; 20Hz – 20kHz
    Lo Crossover; 20Hz – 20kHz
    Knee : Hard, Med, Soft

    De-Esser: Threshold : 20us – 20ms
    Release : 1ms – 100ms
    Ratio : 1:1 – 50:1
    Ess-Band : Listen On/Off
    Ess-Band Filter Freq / Width: 20Hz – 20kHz
  • Dynamics 2: On/Off

    Gate / Ducker: Threshold; -60 – 0dB
    Attack; 50us – 100ms
    Hold; 2ms – 2s
    Release; 5ms – 5s
    Range; 0 - 90dB
    Key; Any Source
    Key Listen
    Freq/Width; 20 – 20kHz

    Compressor: On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
    Gain; 0 to +40dB with
    Autogain Option
    Link; Any Channel / Buss
    Hi Crossover; 20Hz – 20kHz
    Lo Crossover; 20Hz – 20kHz
    S/C Source : Any Source
    S/C Listen : On/Off
    S/C Filter Freq/Width: 20Hz – 20kHz
  • Insert B: (Post EQ/Dyn) On/Off
  • EQ/Dyn order: EQ/Dyn or Dyn/EQ
  • Mute: Channel Mute / Hard Mute
  • Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
  • Channel Safe: Input, EQ, Dyn, Aux, Pan, Fade/Mute, Inserts, Buss, Directs,
    Full Safe
  • Output Routing: Buss, Insert A, Insert B, FX
    Direct: On/Off, Pre-Mute / Pre-Fade / Post-Fade, Level +/- 18dB
  • Fader: 100mm Motorised Fader ∞ to +10dB

Processing Channel Specification
Aux / Group / Matrix Output

  • Name: User-Defined / Presets
  • Phase: Normal / Reverse
  • Digital Trim: -20 to +60dB
  • Delay: >1 Sec (Coarse & Fine control)
  • DiGiTuBe: Drive 0.01 - 50.0
    Bias 0 - 6
  • LPF: 20 – 20kHz, 24dB / Oct
  • HPF: 20 – 20kHz, 24dB / Oct
  • Insert A: (Pre EQ/Dyn) On/Off
  • Equalisation: 4 Band Parametric or Dynamic
    : Parametric Only
    (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf)
    On/Off
    Freq; 20 – 20kHz
    Gain; +/- 18dB
    Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
    Dynamic EQ On/Off
    Over/Under
    Band On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
  • Dynamics 1: Single or Multiband (3-band)

    Compressor: On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
    Gain; 0 to +40dB
    with Autogain Option
    Link; Any Channel / Buss
    Hi Crossover; 20Hz – 20kHz
    Lo Crossover; 20Hz – 20kHz
    Knee : Hard, Med, Soft

    De-Esser: Threshold: 20us – 20ms
    Release: 1ms – 100ms
    Ratio: 1:1 – 50:1
    Ess-Band: Listen On/Off
    Ess-Band Filter Freq/Width: 20Hz – 20kHz
  • Dynamics 2: On/Off

    Gate / Ducker: Threshold; -60 – 0dB
    Attack; 50us – 100ms
    Hold; 2ms – 2s
    Release; 5ms – 5s
    Range; 0 - 90dB
    Key; Any Source
    Key Listen
    Freq/Width; 20 – 20kHz

    Compressor: On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
    Gain; 0 to +40dB
    with Autogain Option
    Link; Any Channel/Buss
    Hi Crossover; 20Hz – 20kHz
    Lo Crossover; 20Hz – 20kHz
    S/C Source : Any source
    S/C Listen : On/Off
    S/C Filter Freq/Width: 20Hz – 20kHz
  • Insert B: (Post EQ/Dyn) On/Off
  • EQ/Dyn Order: EQ/Dyn or Dyn/EQ
  • Mute: Channel Mute / Hard Mute
  • Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
  • Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe
  • Output Routing: Outputs, Insert A, Insert B, FX
  • Fader: 100mm Motorised Fader ∞ to + 10dB
