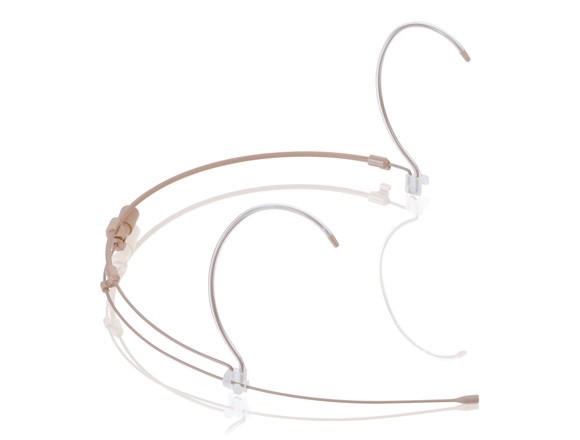

Countryman H6 Series
Product Overview:

The lowest profile headset microphone in the world, combining pure sound quality and water-resistance with a comfortable, easily adjustable headframe.

The H6 Headset is the lowest profile headset microphone in the world. Combining the transparent sound quality and water-resistant capsule design of the E6 Earset with a comfortable, lightweight, and easily adjustable headframe, the H6 Headset is perfect for houses of worship, theaters, broadcasters, and presenters. The H6, available in both omnidirectional and directional versions, features a new sealed connector with exceptional moisture resistance, a slim and nearly indestructable cable, and three sensitivity options.

The H6 Headset is supplied with:

  • Detachable cable
  • Carrying case
  • Black and white cable clips
  • Windscreen
  • Protective caps



Nearly invisible

With a diameter of only 0.1” (2.5 mm) — the size of a No. 2 pencil lead — the mic capsule virtually disappears when worn.


Rugged cable

Aramid strength members and engineered alloys ensure that our cables provide extreme tensile and flex strength.


True colors

Our colors are precision-matched to theatre makeup shades to blend with a wide range of skin tones and clothing.


Sweat - resistant connector

The mic detaches from the cable using a new connector with a tight seal against moisture.



Specifications

Frequency Response:

Omnidirectional: 20 Hz to 20 kHz

Directional: 30 Hz to 15 kHz

Operating Current: 500 uA
Operating Voltage: 1 to 2 Volts
Power Supply Voltage:

+3V with 2.7 kOhm load

+5V with 6.8 kOhm load

+9V with 15 kOhm load

Weight: 0.07 oz (2 grams)
Sensitivity:

Omnidirectional W5 (no band): 7.0 mV/Pascal

Omnidirectional W6 (blue band): 2.0 mV/Pascal

Omnidirectional W7 (purple band): 0.7 mV/Pascal

Directional W5 (no band): 6.0 mV/Pascal

Directional W6 (blue band): 1.9 mV/Pascal

Directional W7 (purple band): 0.6 mV/Pascal

Equivalent Acoustic Noise:

W5: 24 dBA

W6: 29 dBA

W7: 39 dBA

Overload Sound Level:

Omnidirectional W5: 120 dB SPL

Omnidirectional W6: 130 dBA SPL

Omnidirectional W7: 140 dBA SPL

Directional W5: 125 dBA SPL

Directional W6: 135 dBA SPL

Directional W7: 145 dBA SPL

Cable Length:

5 Feet
