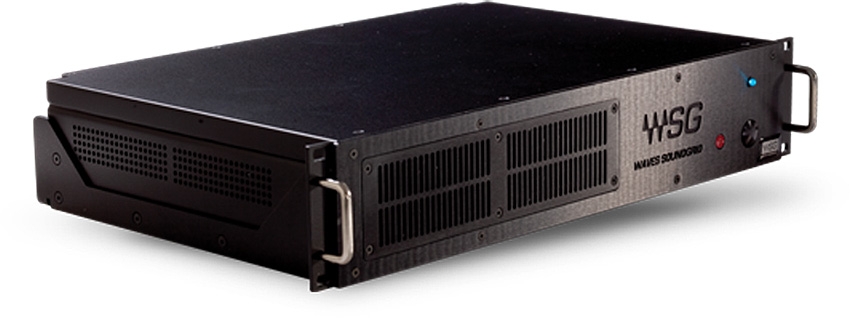

Ideal for venues of any size, Waves Server One for SoundGrid® systems is a 2U rackmount unit which packs a whopping 4 GB of RAM plugin processing power.
MultiRack Benchmarks
The table below indicates the number of plugin racks and plugins that can be inserted into MultiRack and loaded to SoundGrid Server One before the system reaches DSP overload (85%) or fails to play audio fluently (clicks, dropouts, corruption).
| SoundGrid Server One (MultiRack v9.71.20.3) |
||
| Plugin | 44.1kHz | 96kHz |
| API 2500 (mono) | 438 | 211 |
| API 550 (mono) | 512 | 300 |
| API 560 (mono) | 88 | 76 |
| AudioTrack (mono) | 512 | 472 |
| C6 Multiband Compressor (mono) | 153 | 78 |
| CLA-2A Compressor / Limiter (mono) | 297 | 140 |
| CLA-3A Compressor / Limiter (mono) | 314 | 149 |
| CLA-76 Compressor / Limiter (mono) | 512 | 258 |
| dbx® 160 Compressor / Limiter (mono) | 55 | 60 |
| DeEsser (mono) | 512 | 512 |
| Dorrough Stereo (stereo) | 512 | 512 |
| H-Comp Hybrid Compressor (mono) | 512 | 310 |
| H-Delay Hybrid Delay (mono) | 399 | 176 |
| H-EQ Hybrid Equalizer (mono) | 136 | 131 |
| H-Reverb Hybrid Reverb (stereo)* | 10 | 7 |
| IR1 Convolution Reverb (stereo) | 11 | 7 |
| IR-Live Convolution Reverb (stereo)* | 24 | 9 |
| InPhase (mono)** | 154 | 152 |
| J37 Tape (mono) | 56 | 60 |
| Kramer HLS Channel (mono) | 132 | 146 |
| Kramer Master Tape (mono) | 82 | 40 |
| L2 Ultramaximizer (mono) | 512 | 286 |
| LoAir (mono) | 427 | 235 |
| MaxxVolume (mono) | 512 | 379 |
| NLS Non-Linear Summer (mono) | 322 | 148 |
| PuigChild Compressor (mono) | 287 | 132 |
| PuigTec EQP1A (mono) | 144 | 102 |
| REDD 17 (mono) | 130 | 60 |
| Renaissance Bass (mono) | 512 | 241 |
| Renaissance Channel (mono) | 489 | 252 |
| Renaissance Compressor (mono) | 512 | 512 |
| Renaissance Equalizer (REQ6) (mono) | 512 | 512 |
| Renaissance Reverb (stereo) | 117 | 60 |
| Renaissance Vox (mono) | 512 | 512 |
| Scheps 73 (mono) | 140 | 154 |
| SSL E-Channel (mono) | 512 | 275 |
| SSL G-Channel (mono) | 512 | 276 |
| SSL G-Equalizer (mono) | 512 | 512 |
| SSL G-Master Buss Comp (mono) | 512 | 268 |
| TG 12345 (mono) | 44 | 44 |
| TransX Multi (mono) | 334 | 190 |
| TransX Wide (mono) | 512 | 512 |
| Vitamin Sonic Enhancer (mono) | 221 | 106 |
The maximum number of plugins that can be tested given system limitations is 512 (64 MultiRacks) for either mono or stereo.
Plugin benchmark results may vary slightly from one system setup to another. While most plugins perform most efficiently at
44.1 kHz, a few perform as or even more efficiently at 96 kHz thanks to their upsampling or to algorithms that do not depend
on sample rates.
* Plugin’s peak DSP usage level is much higher than its average level. Make sure to monitor peak levels on the DSP meter.
** Plugin introduces high latency. Click here for a latency chart of all Waves plugins.
StudioRack Benchmarks
The table below indicates the number of plugins that can be inserted into StudioRacks and loaded to SoundGrid Server One
before the system fails to play audio fluently (clicks, dropouts, corruption).
| SoundGrid Server One (StudioRack v9.7.90.10) |
||
| Plugin | 44.1kHz | 96kHz |
| API 2500 (mono) | 369 | 123 |
| API 550 (mono) | 512 | 250 |
| API 560 (mono) | 68 | 55 |
| AudioTrack (mono) | 512 | 359 |
| C6 Multiband Compressor (mono) | 126 | 57 |
| CLA-2A Compressor / Limiter (mono) | 244 | 91 |
| CLA-3A Compressor / Limiter (mono) | 256 | 88 |
| CLA-76 Compressor / Limiter (mono) | 512 | 182 |
| dbx® 160 Compressor / Limiter (mono) | 55 | 59 |
| DeEsser (mono) | 512 | 448 |
| Dorrough (stereo) (stereo) | 256 | 256 |
| H-Comp Hybrid Compressor (mono) | 512 | 228 |
| H-Delay Hybrid Delay (mono) | 328 | 101 |
| H-EQ Hybrid Equalizer (mono) | 101 | 98 |
| H-Reverb Hybrid Reverb (stereo)* | 10 | 7 |
| IR1 Convolution Reverb (stereo)* | 13 | 12 |
| IR-Live Convolution Reverb (stereo)* | 43 | 17 |
| InPhase (mono)** | 512 | 246 |
| J37 Tape (mono) | 50 | 52 |
| Kramer HLS Channel (mono) | 142 | 58 |
| Kramer Master Tape (mono) | 64 | 34 |
| L2 Ultramaximizer (mono) | 456 | 187 |
| LoAir (mono) | 350 | 130 |
| MaxxVolume (mono) | 512 | 256 |
| NLS Non-Linear Summer (mono) | 268 | 108 |
| PuigChild Compressor (mono) | 254 | 102 |
| PuigTec EQP1A (mono) | 186 | 72 |
| REDD 17 (mono) | 80 | 38 |
| Renaissance Bass (mono) | 403 | 185 |
| Renaissance Channel (mono) | 393 | 192 |
| Renaissance Compressor (mono) | 512 | 428 |
| Renaissance Equalizer (REQ6) (mono) | 512 | 512 |
| Renaissance Reverb (stereo) | 111 | 37 |
| Renaissance Vox (mono) | 512 | 460 |
| Scheps 73 (mono) | 110 | 92 |
| SSL E-Channel (mono) | 512 | 165 |
| SSL G-Channel (mono) | 482 | 173 |
| SSL G-Equalizer (mono) | 512 | 296 |
| SSL G-Master Buss Comp (mono) | 464 | 185 |
| TG 12345 (mono) | 38 | 39 |
| TransX Multi (mono) | 286 | 122 |
| TransX Wide (mono) | 512 | 438 |
| Vitamin Sonic Enhancer (mono) | 176 | 75 |
The maximum number of plugins that can be tested given system limitations is 512 (mono) or 256 (stereo) (64 or 32 StudioRacks,
respectively). Plugin benchmark results may vary slightly from one system setup to another. While most plugins perform most efficien
tly at 44.1 kHz, a few perform as or even more efficiently at 96 kHz thanks to their upsampling or to algorithms that do not depend on
sample rates.
* Plugin’s peak DSP usage level is much higher than its average level. Make sure to monitor peak levels on the DSP meter
in the eMotion ST mixer.
** Plugin introduces high latency. Click here for a latency chart of all Waves plugins.
Processor
Intel® Core i5-4590K
Dimensions
Length: 48.3 cm / 19 inches
Height: 8.9 cm / 3.5 inches
Depth: 30 cm / 11.8 inches
Device Weight: 7.6 kg /16.7 lbs
Package Weight: 10.1 kg / 22.4 lbs
Power Consumption
| Server | 120V | 220V |
|---|---|---|
| SoundGrid Server One V2 | 60 Watts | 56 Watts |
| SoundGrid Server One V1 | 57.5 Watts | 53 Watts |
* Tested @75 F/23.8 C
