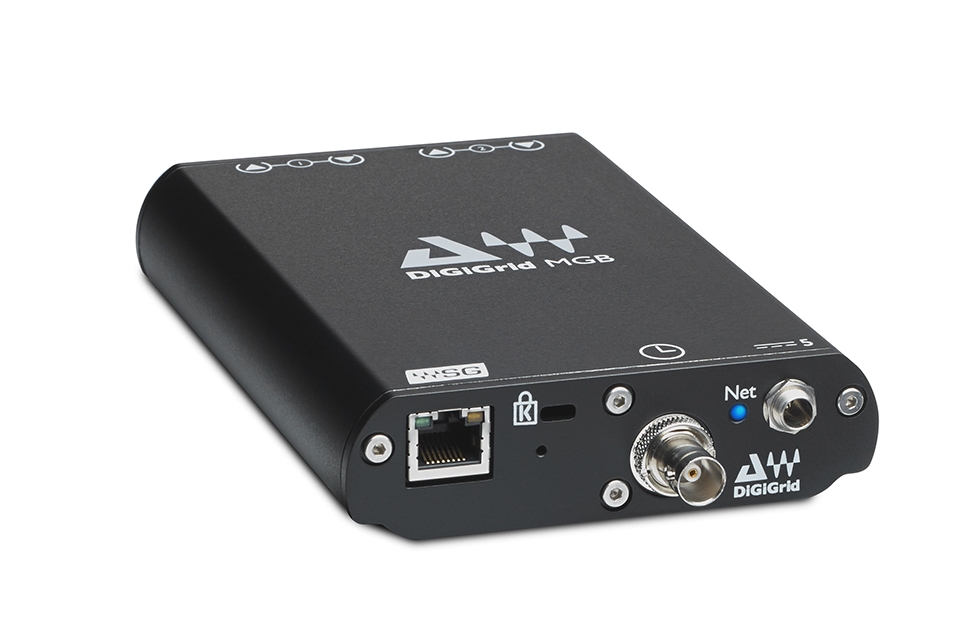

Compact and portable, the DiGiGrid MGB interface lets you plug any coaxial MADI-enabled device into the power of the Waves SoundGrid networking and processing platform. Record, process and playback up to 128 audio channels, using literally hundreds of Waves and third-party plugins, with super-low latency, clocking in at only 0.8 milliseconds! You can even record to two computers simultaneously: One for virtual soundcheck, the other for backup. So if you’re on the tour bus, in your hotel room, at the airport – wherever – you can quickly and conveniently setup your next show, using only your laptop.

With a DiGiGrid MGB MADI-to-SoundGrid interface, real-time low-latency networking and processing is only an Ethernet cable away.

Plug the MGB straight into your computer to record up to 128 channels with simultaneous playback of 128 channels. Add a SoundGrid DSP server and DiGiGrid SWI network switch plus Waves MultiRack SoundGrid host application, and your MADI-compatible live or broadcast console now has real-time low-latency processing capabilities. And if you require a higher level of audio quality, a simple configuration change switches the MGB to 96kHz, for 64 channels of recording and 64 channels of simultaneous playback.

Specifications

• MADI Coaxial I/O (BNC)
• Supported sample rates: 44.1, 48, 88.2, 96 kHz
• 112/128 channel I/O @ 48kHz
• 56/64 channel I/O @ 96kHz
• 56 and 64 channel mode support
• Supports double wire (48k frame) and single wire (96k frame) @ 96kHz
• Clock Synchronization via Word Clock input, MADI (Port 1 or 2), SoundGrid (Sync over Ethernet), Internal
• 1 SoundGrid RJ45 Ethernet port
• Reset switch
• DiGiCo Stage Rack channel 57 support

The MGB installer includes the relevant drivers and software for your unit: the SoundGrid ASIO/Core Audio driver, the SoundGrid Studio Application, the eMotion ST mixer, StudioRack, and the MGB Control Panel.

DiGiGrid MGB Comes with the Complete Soundgrid Studio System Software by Waves

The SoundGrid Studio System is the next generation of sound technology. It is a real-time processing and networking platform designed to bring your studio up to light speed. It allows your DAW to offload its plugin processing to a SoundGrid DSP server and enables your devices to communicate with one another and with the devices of the facilities you work with. The SoundGrid Studio System integrates seamlessly with all DAWs and DiGiGrid (or other SoundGrid-compatible) I/Os, providing endless possibilities for setups of every size—from a single DAW with one DiGiGrid I/O, to an entire network of host computers, I/Os, and SoundGrid DSP servers.

The SoundGrid Studio System Gives You the Power to Do More

• Real-Time Processing – Run hundreds of plugins simultaneously.
• Low-Latency Monitoring – Track and rehearse with full-on plugins in near-zero latency
• Networking – Connect everything and everyone through a centralized hub.
• Seamless Integration – Connect multiple DAWs using the SoundGrid ASIO/Core Audio driver
• Open Architecture – Compliant with SoundGrid-compatible Waves and third-party plugins.

SoundGrid Studio System Software Components

• SoundGrid Studio Application – For managing the SoundGrid network on your host computer.
• eMotion ST Mixer – Runs plugins in real time for recording, mixing and low-latency monitoring when tracking and rehearsing.
• StudioRack – For running plugin chains, saving and loading their presets, and offloading their processing to a SoundGrid DSP server.
• SoundGrid ASIO/Core Audio – Connects any DAW to the SoundGrid network as a software I/O.
