OVERVIEW

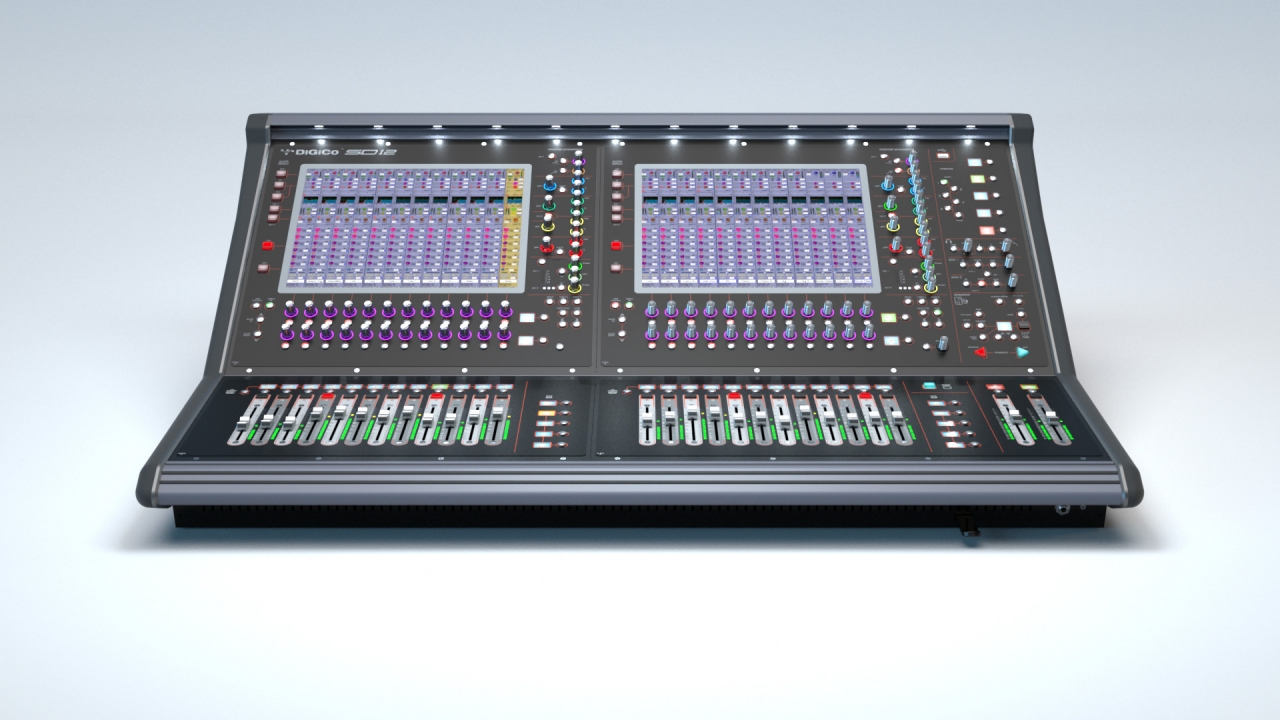

The SD12 is set to raise the bar in terms of what users will now expect from a compact, affordable, multi- application digital console. Not only is SD12 a true sonic powerhouse, it also benefits from dual 15-inch touch screens, never before seen on a console in this price bracket, and is the first in the SD Range with built-in recording interfaces; which makes Virtual Soundchecking very straightforward indeed. Furthermore, the SD12 now includes a DVI output, for an overview of the console. New LED meters allow for a brighter, faster operation, and the SD12 Lightbar is identical to that of the SD5 and flagship SD7 consoles. And guess what? We even had space for two assignable master faders - only previously seen on the larger DiGiCo consoles - as well as dual DMI Slots, perfect for expandability.

MAIN FEATURES

Compact in size
Dual 15-inch touchscreens
24 channels in 1 view
Dual operator mode
Advanced surface connectivity with optional DMI cards
Latest generation Super FPGA
Familiar work flow and control in a more compact frame
Live Touring, Corporate, Install, HoW, Theatre & Broadcast
All at a price point that you won’t believe!

CONNECTIVITY

8 local mic/line inputs
8 local line outputs
8 mono AES/EBU in/out
Dual MADI in/out
Dual DMI card slots
Optional dual Optocore loops
UB MADI 24 channel USB interface
16 GPI/GPO, MIDI, Wordclock in/out
Overview monitor output, USB, Network

HTL (HIDDEN TIL LIT) TECHNOLOGY

2 x 24 encoders with RGB HTL ring
SD7 style channel strip with HTL EQ encoders
New Dynamics metering on channel strip
New high intensity meters by faders

DMI

DiGiCo brought its DMI (Digital Multichannel Interface) into the pro-audio world via its Orange Box, then into the S-Series, and now it makes its way into the SD Range for the first time via the SD12. Not only is MADI built into this console, as well as all the local I/O you’d expect from a DiGiCo, there are also two slots for DMIs - that's a whopping 64 channels of I/O per slot.
