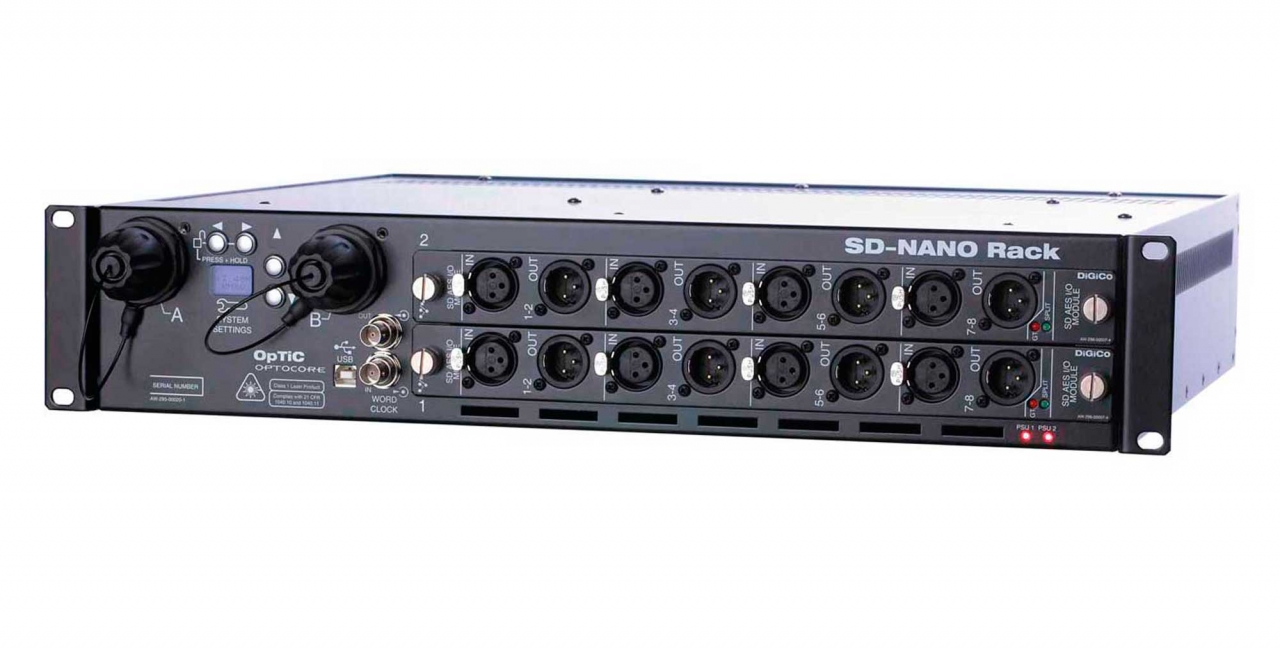

DiGiCo SD-Nano Rack
Product Overview:

DiGiCo I/O in a 2U stage box unit

The SD-Nano Rack is the latest addition to the DiGiCo range of high sample rate racks, complementing the SD, SD-Mini and D racks to make a completely flexible remote rack solution for any situation.

The SD-Nano is a 2U rack and can accept SD input and output cards be they analogue or digital including AES/EBU, Dante, AES-42, ADAT, HD-SDI and Aviom. Running purely digital the Nano can run up to 16 ins and outs or if it’s all analogue you need then a maximum of 16 ins or outs is possible or any combination in banks of eight (8 in and 8 out for example). The Nano Rack is Optical only .

So, when you need smaller racks distributed around a stage or building, the Mini and the Nano are there to provide you with flexible, affordable digital I/O totally compatible and controllable with the full range of DiGiCo consoles and the larger SD and D racks.

With up to a total of 14 racks on one optical loop, or 28 on a dual loop system, it is easy to see the potential for large corporate events, installations or just expansive stages. This, coupled with the ability for any of the five consoles that can sit on one optical loop being able to address all inputs and individually address output slots on any rack, giving any engineer or system designer the flexibility and power they need to make any complex situation easy and intuitive.

SD-Nano Rack I/O Modules

 The following modules are available. Click on a module name for a large photo.
