HIGH QUALITY BALANCED MIC. CABLES
NEGLEX TYPE #22AWG BALANCED MIC. CABLE

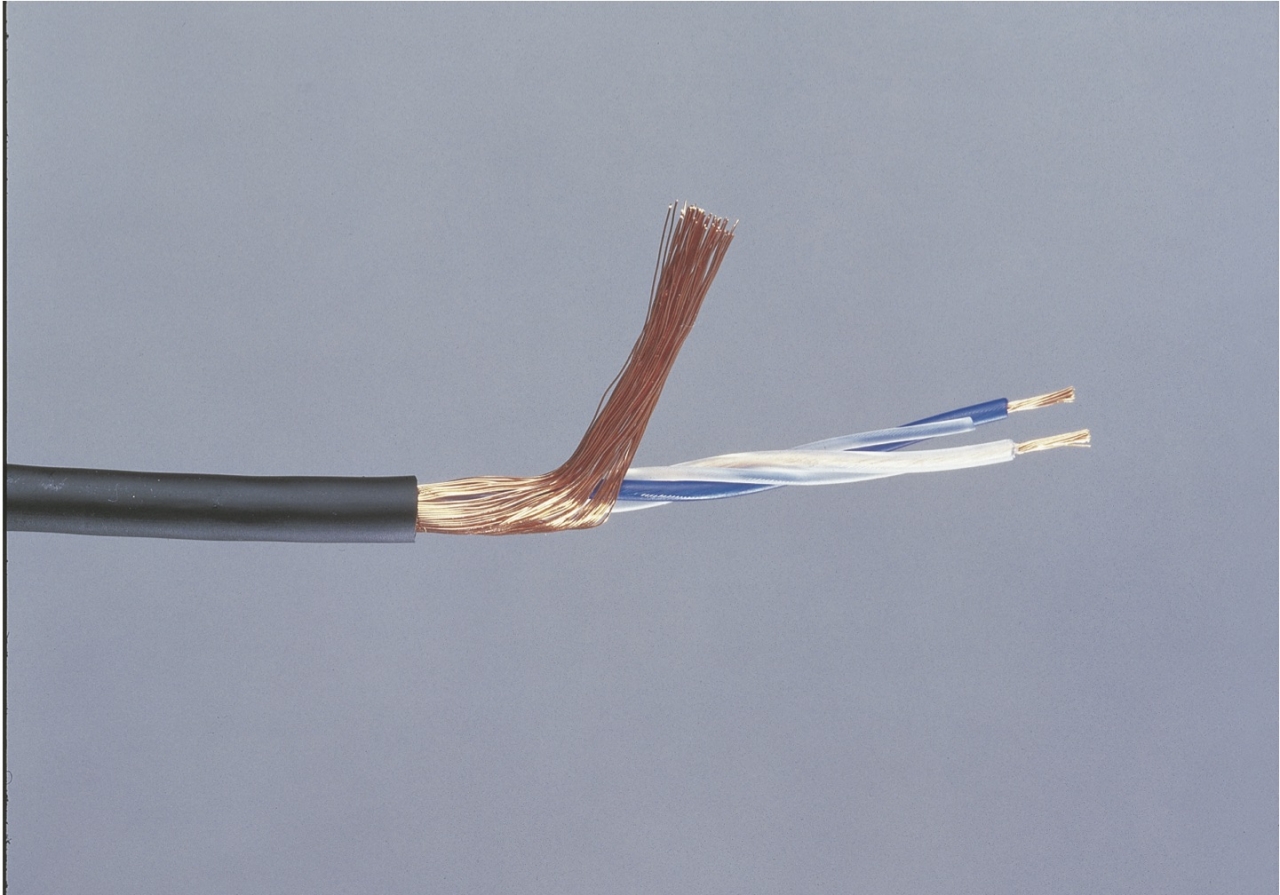

2549 has been designed using the famous Neglex OFC to provide the highest quality of audio reproduction in any recording application. It features #22AWG conductors and lower capacitance than the quad cables. The served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when high frequencies are important and where long cable runs are needed, and, it is cheaper and easier to terminate than quad cables.
Specifications
SPECIFICATIONS
| Configuration |  |
 |
|
| Part No. | W2549 | W2791 | |
| No. of Conductor | 2 | ||
| Conductor | Details | 30/0.12 OFC | 105/0.05 A |
| Size(mm²) | 0.339mm² (#22 AWG) | 0.206mm² (#24 AWG) | |
| Insulation | Ov. Dia.(mm) | 1.9Ø (0.075") | 1.5Ø (0.059") |
| Material | XLPE (Cross-Linked Polyethylene) | ||
| Colors | Blue / Clear | Red / Clear | |
| Shield | Served Approx. 64/0.18A | Braid 0.10A/9/16 | |
| Jacket | Ov. Dia.(mm) | 6.0Ø (0.236") | 5.5Ø (0.217") |
| Material | Flexible PVC | Flexible PVC | |
| Colors | Black / Red / Yellow / Green / Blue | Black / Red / Yellow / Green / Blue | |
| Roll Sizes | 50m (164 Ft) 100m (328Ft) 200m (656Ft) |
50m (164 Ft) 100m (328Ft) 200m (656Ft) |
|
| Weight per 200m Roll | 11kg | 9kg | |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Part No. | W2549 | W2791 | |
| DC Resistance at 20°C | Inner Cond. | 0.058Ω/m(0.018Ω/Ft) | 0.09Ω/m(0.027Ω/Ft) |
| Shield | 0.013Ω/m(0.004Ω/Ft) | 0.002Ω/m(0.006Ω/Ft) | |
| Capacitance at 1kHz, 20°C (Partial C. Value) See below figure* |
K0 | 76pF/m(23pF/Ft) | 86pF/m(26pF/Ft) |
| K1 | 11pF/m(3.4pF/Ft) | 10pF/m(3.1pF/Ft) | |
| Inductance between conductors at 1kHz. 20°C | 0.8µH/m(0.24µH/Ft) | 0.8µH/m(0.24µH/Ft) | |
| Electrostatic Noise** | 50mV Max. | 250mV Max. | |
| Electromagnetic Noise** | 0.15mV Max. | 0.15mV Max. | |
| Microphonics at 50KΩ Load** | 30m V Max. | 30m V Max. | |
| Voltage Breakdown | Must withstand at DC 125V/15sec. | ||
| Insulation Resistance | 100000 M Ω × m Min. at DC 125V, 20°C | ||
| Flex Life** | 14,500 cycles | 164,000 cycles | |
| Tensile Strength | 657N | 578N | |
| Emigration | Non-emigrant to ABS | Non-emigrant to ABS | |
| Applicable Temperature | -20°C‾ +70°C(-4°F‾ +158°F) | ||
| ** Using standard testing methods of Mogami Wire & Cable Corp. | * Partial Capacitance |
