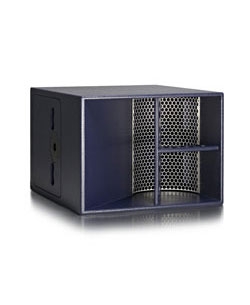

Funktion-One F118 MK2
Product Overview:

Single 18" Subwoofer

The F118 Mk2 is the single 18” version of the F218 offering a more compact horn-loaded enclosure.  In common with the F218, the Mark 2 version brings refined loading, improved heat dissipation and an updated driver specification.  It provides strong, well-defined, clean bass from a small and manageable package.  The F118 can be supplied with an optional pole mount for use with a wide range of mid-high products including the F101, F1201, F88, R1 and R2SH.  An installation version of this enclosure with flying points is also available; which can be effectively used to provide bass extension to products such as the AX88.



Features:

  • Proven loading design with latest Andrews’ tuning
  • New driver orientation provides improved cooling
  • Powerful and compact
  • Funktion One designed driver
  • Integral handles
  • Optional throat grill
  • Optional wheels
  • Optional pole mount (35mm diameter)

Specifications

Driver

Operating

 Band

Sensitivity

(1W at 1m)

Power

(rms)*

Nominal

Impedance

18"

25 - 200Hz

103dB

450W

8Ω

*AES rated

Frequency Response ± 3dB: 50 - 280Hz

Weight (ceramic magnets):

      (neodymium magnets):

50kg (110lbs)

45kg (99lbs)

Construction: 18mm Birch Ply
Connectors: 2 x Speakon NL4
