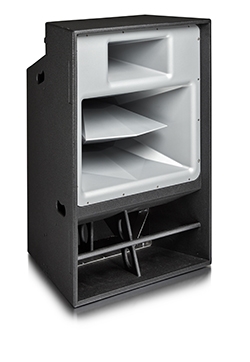

Funktion-One Evo 7T
Product Overview:

Very High Intensity Touring Loudspeaker

The Evolution 7T is a very high intensity touring loudspeaker and is incredibly compact for its output performance.  The Evo 7T is fully horn-loaded with 15” mid-bass, 10” Funktion One signature mid-range and a 1.4” compression driver.  The Evolution 7T has 40 degree nominal horizontal dispersion and physically arrays at 30 degrees, three wide giving smooth coverage to 100 degrees, suitable for crowd sizes of around 2,500 people.

Perfect for both Live and Dance use, Evo7T touring systems offer state-of-the-art Funktion One sound quality.

We recommend their use with Funktion One bass enclosures.



Features:

  • Fully horn loaded for high efficiency
  • Three-way
  • Funktion One designed drivers
  • Low weight Neodymium Magnets throughout
  • Fully specified for Touring use with integated flying system
  • Optional Wheelboard (coming soon)
  • Optional sturdy grille for discrete appearance

Specifications

Driver

Operating

 Band

Sensitivity

(1W at 1m)

Power

(rms)*

Nominal

Impedance

15" 50/80 - 200Hz 103dB 400W 8Ω
10" 200 - 4kHz 108dB 250W 16Ω
1.4" 4kHz - up 109dB  75W 32Ω

*AES rated



Frequency Response ± 3dB: 55Hz - 20kHz
Weight (without wheelboard): 61kg (134lbs)
Nominal Dispersion: 40° Horizontal x 20° Vertical
Connectors:

2 x Speakon NL8
