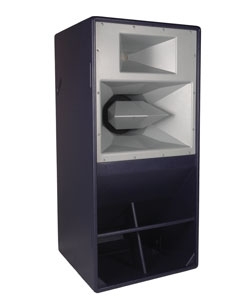

Funktion-One Resolution 4E

The Resolution 4E is a great loudspeaker choice for medium scale events and installations offering exceptional sound quality.  With simplified enclosure design without integrated flying hardware or captive lead found on the full touring version, the R4E represents great value for money.  Typically used two wide for 90 degree overall dispersion it is perfect for use in ground stacks with F218 or F121 bass.  Dedicated accessories also enable the R4E to be flown and arrayed in fixed installations.



Specifications

Driver

Freq.Band

Sensitivity

(1W at 1m)

Power

(rms)*

Nominal

Impedance

12" 114 - 445Hz 105dB 300W 8Ω
8" 445 - 5k77Hz 108dB 200W    16Ω**
1" 5k55Hz - up 109dB 50W     16Ω**

*AES rated

** 12Ω Nominal Total Impedance when run passively

Go to crossover settings



Frequency Response ± 3dB: 114Hz - 18kHz

Weight:

See above
Nominal Dispersion:  50° Horizontal x 25° Vertical
Connectors: Speakon NL4 or EP6
