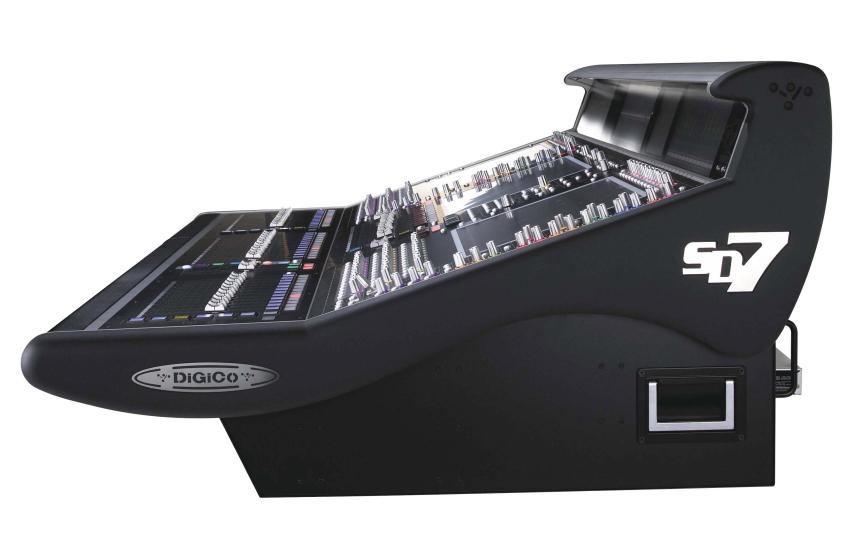

DiGiCo SD7T
Product Overview:

Live Digital Console with Stealth Digital Processing™

DiGiCo SD7T: “With great power comes great responsibility...”

When running a theatrical production there are many powerful options that the SD7T software provides you with giving you greater flexibility than ever before.

In theatre mode you have access to more powerful cue list automation and editing. Now you can easily update specific parameters, across all cues automatically, using Auto Update mode, which gives you the ability to alter your cues on the fly.

Channel Aliases are also introduced allowing a collection of channel parameters to be applied to any channel on the desk. Simply by assigning a different channel alias from one cue to the next applies the alias parameters, giving you the option to essentially re-use the channel and swap back to the original alias with ease. Using Auto Update in this scenario will only effect the alias you are working on, keeping your alternatives safe.

Complex parameter specific custom aliases can also be created allowing the operator to change only that which is needed from one alias to another — power that makes EQ alteration due to costume changes a breeze for example.

Copying aliases from channel to channel or from cue to cue is also now quick and easy, making programming a pleasure. The use of Channel Sets is yet another step forward allowing easy allocation of groups of channels to VCAs when building cues. In the real world this would make assigning a woodwind or brass section to a VCA a one step process.

Most theatrical productions use a distributed loudspeaker system and the powerful 32 x 32 matrix provides individual crosspoint delays on each of the matrix nodes with times up to 1.3 seconds. These delays on each and every individual node can be recorded in the cue list giving accurate control of audio placement and time alignment.

This powerful toolset complements the standard high quality, efficient workflow processes that are built into every SD7 giving you the tools you need to get the job done in a logical and methodical manner allowing more time to concentrate on being creative.

Scratching the surface

A combination of technologies have been seamlessly integrated into the SD7T's worksurface to meet the everyday needs of any engineer. We've managed to pack them into three user-friendly interactive 15-inch high-resolution touch screens, each of which accommodates a bank of 12 faders,  to provide the user with the perfect platform – everything is just 'where it should be'.

To make navigation even easier, we've added high-definition interactive meter bridges and multicoloured knobs and switches; and for further functionality and flexibility, 16 assignable faders (one bank of 12, one bank of four) sit neatly below the master screen in the centre of the console, taking the SD7T's fader tally to a sizeable 52.

To increase the fader count further for multi-engineer applications and shows, an EX-007 Fader Expansion unit is available. Two EX-007s can be connected via a simple Cat5e connector for remote control or simply to increase your fader count to 100.

What's under the hood?

The SD7T boasts a massive 256 processing paths at 48kHz/96kHz (or 128 at 192kHz).

Standard channel processing, whether inputs or outputs, includes Channel Delay, DiGiTube, Single and Multi Channel Presets, Dual insert points, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ (eight on outputs) with band curve selection and Dynamic EQ on each band, Dual insert points, DiGiCo's DYN 1 (Compressor, De-esser or Multi Channel Compressor) and DYN 2 (Gate, Compressor or Ducker).

The master section incorporates 32 gangable 32-band graphic EQs, 48 stereo effects, and 36 control groups (VCAs); and using snapshots, engineers can now switch between complete configurations in any live environment easier than ever before, be it at rehearsals, during system setup, or even at a show.

In addition, we've included 128 busses, all of which are assignable as mono/stereo groups or auxiliary busses; and in addition to these busses, for further configurability, we've provided a 32 x 32 output matrix with crosspoint delays on each of the matrix nodes (that can also be recorded in the cue list), dual solo busses, and a Master buss. Essentially, users have the equivalent of 160 busses of DSP at their disposal.

Unlike all other digital console manufacturers, you don't lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.

I/O

The SD7T's local I/O includes 12 analogue inputs, 12 analogue outputs and 12 AES I/O (mono); and when coupled with a second engine, with four redundant MADI ports per engine, and one Optocore loop with the ability for an option for a second to be fitted.

This amounts to a monumental 1392 I/O connections on a single optic loop with one worksurface.

In addition, there is an optional DiGiCo SoundGrid module which can be fitted to both engines for full redundancy when linked to two external PC servers such as SoundGrids or DiGiGrids. This provides the user with instant access to 32 fully integrated low-latency Waves stereo Multi Racks, each with the ability to have up to eight plugins per rack. That's 128 I/O - and as you'd expect from DiGiCo, this is all additional I/O.

All Waves compatible plugins are pre-loaded, and as this is integral within the console, you have the added advantage of touch screen control; and all shapshots and session files are saved within the console

Main Features

  • 253 (Max) Input Channels
  • 128 (Max) Aux / Sub-Group Busses
  • Not applicable Master Bus
  • 32 x 32 (with nodal delay Full Processing Matrix
  • 2 Solo
  • 256 Dynamic Equalizers
  • 256 DiGiTuBes
  • 256 Multiband Compressors
  • 48 Digital FX
  • 32 Graphic Equalizers
  • Optional Waves Integration
  • 48/96/192kHz Sample Rate
  •  one loop standard Optics

Specifications

General Specifications

  • Faders 38 x 100mm touch-sensitive, motorised + 14 x 60mm touch sensitive, motorised
  • Screens 3 x 15” LCD high - resolution touch screens
  • Meterbridge 3 x Custom Mounted LCD high-resolution TFT-LCD screens
  • Redundancy Internal removable engine x 2
  • Internal hot-swappable PSU x 2
  • Processing Channels Up to 256 (combination of Input Channels / Aux / Solo Group Busses)
  • Busses Up to 128 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
  • Matrix Up to 32 Input / 32 Outputs with full processing
  • Control Groups Up to 36, selectable for VCA-style, Moving fader, Mute Group
  • Graphic Eq 32 x 32-band, Gain +/- 12dB
  • Internal FX Up to 48 stereo effects comprising 16 floating point reverbs and 32 delay/chorus/pitch/enhancer
  • Local I/O 12 x mic/line I/O, 12 x AES I/O
  • MADI interface 4 redundant interfaces, BNC connectivity
  • Optic interface Fibrecast optic
  • Sampling rates 48kHz / 96kHz / 192kHz (processing capabilities halved at 192kHz)
  • GPI/GPO 16 as standard, expandable to 32
  • Video Inputs x 2, Outputs x 2
  • Ext Sync Wordclock, AES, Video, MADI, Optics
  • Physical Dimensions 1496mm (w) x 875mm (d) x 503mm (h)
  • Weight 107Kg (267Kg with flightcase)
  • Power Requirements 90V-260V, 50-60Hz, 600VA

Audio Specification

  • Sample Rate: 48kHz, 44.1kHz or 96kHz
  • Processing Delay: 2ms Typical @ 48k(60 Stereo Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @96k
  • Internal Processing: Up to 40-bit, Floating Point
  • A>D & D>A: 24-bit Converter Bit Depth
  • Frequency Response: +/- 0.6dB (20Hz – 20kHz)
  • THD: <0.05% @ Unity Gain,: 10dB Input @ 1kHz
  • Channel Seperation: Better Than 90dB: (40Hz – 15kHz)
  • Residual Output: <90dBu Typical
  • Noise: (20Hz - 20kHz)
  • Microphone Input: Better Than -126dB: Equivalent Noise
  • Maximum Output Level: +22dBu
  • Maximum Input Level: +22dBu

Processing Channel Specification
Input Channel

  • Name: User-Defined / Presets
  • Channel Selection: Mono / Stereo / Multi
  • Input Routing: Main & Alternate Input
  • Analogue Gain: -20 to +60dB
  • Phase: Normal / Reverse
  • Digital Trim: -40 to +40dB
  • Delay: >1 Sec (Coarse & Fine Control)
  • DiGiTuBe: Drive 0.01 - 50.0
  • Bias 0 - 6
  • LPF: 20 – 20kHz, 24dB/Oct
  • HPF: 20 – 20kHz, 24dB/Oct
  • Insert A: (Pre EQ/Dyn) On/Off
  • Equalisation: 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/
    Hi Shelf, Hi/Hishelf)
    On/Off
    Freq; 20 – 20kHz
    Gain; +/- 18dB
    Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
    Dynamic EQ On/Off
    Over/Under
    Band On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
  • Dynamics 1: Single or Multiband (3-Band)

    Compressor: On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
    Gain; 0 to +40dB with
    Autogain Option
    Link; Any Channel/Buss
    Hi Crossover; 20Hz – 20kHz
    Lo Crossover; 20Hz – 20kHz
    Knee : Hard, Med, Soft

    De-Esser: Threshold : 20us – 20ms
    Release : 1ms – 100ms
    Ratio : 1:1 – 50:1
    Ess-Band : Listen On/Off
    Ess-Band Filter Freq / Width: 20Hz – 20kHz
  • Dynamics 2: On/Off

    Gate / Ducker: Threshold; -60 – 0dB
    Attack; 50us – 100ms
    Hold; 2ms – 2s
    Release; 5ms – 5s
    Range; 0 - 90dB
    Key; Any Source
    Key Listen
    Freq/Width; 20 – 20kHz

    Compressor: On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
    Gain; 0 to +40dB with
    Autogain Option
    Link; Any Channel / Buss
    Hi Crossover; 20Hz – 20kHz
    Lo Crossover; 20Hz – 20kHz
    S/C Source : Any Source
    S/C Listen : On/Off
    S/C Filter Freq/Width: 20Hz – 20kHz
  • Insert B: (Post EQ/Dyn) On/Off
  • EQ/Dyn order: EQ/Dyn or Dyn/EQ
  • Mute: Channel Mute / Hard Mute
  • Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
  • Channel Safe: Input, EQ, Dyn, Aux, Pan, Fade/Mute, Inserts, Buss, Directs,
    Full Safe
  • Output Routing: Buss, Insert A, Insert B, FX
    Direct: On/Off, Pre-Mute / Pre-Fade / Post-Fade, Level +/- 18dB
  • Fader: 100mm Motorised Fader ∞ to +10dB

Processing Channel Specification
Aux / Group / Matrix Output

  • Name: User-Defined / Presets
  • Phase: Normal / Reverse
  • Digital Trim: -20 to +60dB
  • Delay: >1 Sec (Coarse & Fine control)
  • DiGiTuBe: Drive 0.01 - 50.0
    Bias 0 - 6
  • LPF: 20 – 20kHz, 24dB / Oct
  • HPF: 20 – 20kHz, 24dB / Oct
  • Insert A: (Pre EQ/Dyn) On/Off
  • Equalisation: 8 Band EQ: 4 band Parametric and 4 band parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf)
    On/Off
    Freq; 20 – 20kHz
    Gain; +/- 18dB
    Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
    Dynamic EQ On/Off
    Over/Under
    Band On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
  • Dynamics 1: Single or Multiband (3-band)

    Compressor: On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
    Gain; 0 to +40dB
    with Autogain Option
    Link; Any Channel / Buss
    Hi Crossover; 20Hz – 20kHz
    Lo Crossover; 20Hz – 20kHz
    Knee : Hard, Med, Soft

    De-Esser: Threshold: 20us – 20ms
    Release: 1ms – 100ms
    Ratio: 1:1 – 50:1
    Ess-Band: Listen On/Off
    Ess-Band Filter Freq/Width: 20Hz – 20kHz
  • Dynamics 2: On/Off

    Gate / Ducker: Threshold; -60 – 0dB
    Attack; 50us – 100ms
    Hold; 2ms – 2s
    Release; 5ms – 5s
    Range; 0 - 90dB
    Key; Any Source
    Key Listen
    Freq/Width; 20 – 20kHz

    Compressor: On/Off
    Threshold; -60 – 0dB
    Attack; 500us – 100ms
    Release; 10ms – 10s
    Ratio; 1:1 – 50:1
    Gain; 0 to +40dB
    with Autogain Option
    Link; Any Channel/Buss
    Hi Crossover; 20Hz – 20kHz
    Lo Crossover; 20Hz – 20kHz
    S/C Source : Any source
    S/C Listen : On/Off
    S/C Filter Freq/Width: 20Hz – 20kHz
  • Insert B: (Post EQ/Dyn) On/Off
  • EQ/Dyn Order: EQ/Dyn or Dyn/EQ
  • Mute: Channel Mute / Hard Mute
  • Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
  • Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe
  • Output Routing: Outputs, Insert A, Insert B, FX
  • Fader: 100mm Motorised Fader ∞ to + 10dB
