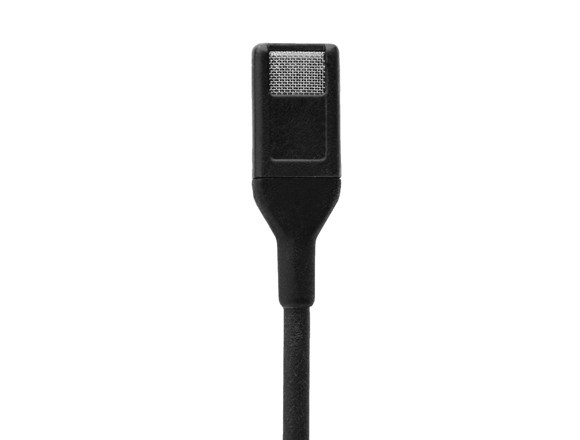

Countryman i2 Instrument Mic
Product Overview:

The I2 Instrument Microphone combines smooth frequency response, low noise, and precise polar patterns with deep nulls: perfect for capturing the full character of instruments

The I2 Instrument Microphone has been engineered from the ground up for smooth frequency response, low noise, and precise polar patterns with deep nulls and natural on- and off-axis response. The combination of small size and sonic precision makes it ideal for X-Y, M-S, and other techniques that rely on accurate coincident positioning and consistent patterns. Its tiny size makes it perfect for distance miking that is invisible on camera. Flexible new close miking techniques are aided by Countryman's line of instrument mounts, which are designed to mount securely and gently to many different instruments.

Specifications

Frequency Response:

Omnidirectional: 20 Hz to 20 kHz

Directional: 50 Hz to 20 kHz

Overload Sound Level: 150 dB SPL at 1% THD
Output Impedance: 600 Ohms +/- 2% balanced, transformerless. Will drive load impedance without distortion at full rated SPL.
Equivalent Acoustic Noise:

Omnidirectional: 25 dBA

Directional: 29 dBA

Power Requirements: 6V to 50V Phantom at 4mA. Voltage below 24V wil result in reduced overload SPL.
Sensitivity:

High Gain: 10 mV/Pascal

Standard Gain: 1.5 mV/Pascal

Dimensions:

9/32" x 7/16" x 5/32" (7mm x 10.5mm x 3.5mm) excluding cable strain relief.
