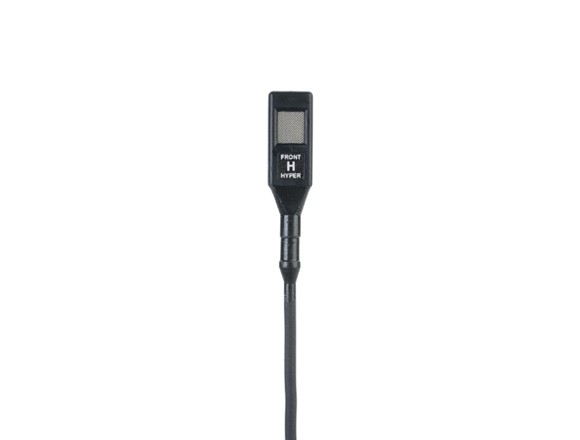

Countryman ISOMAX 2
Product Overview:

The ISOMAX 2 "All Purpose Microphone" has true frequency-independent pattern control and precise response to capture strings, wind, brass and percussion beautifully while easily rejecting ambient sound

Available in omni, cardioid, and hypercardioid patterns, the Isomax 2 offers true frequency-independent patterns, unlike competing mics that become omnidirectional at the low frequencies. This control, along with high SPL capability, makes the Isomax 2 a great all-around microphone for instruments, placement, or whatever the task at hand.

High overload

At sound pressure levels approaching the pain threshold, our ISOMAX 2 still won't distort. That's why it's a favorite for close-miking instruments.

Polar patterns

Precise polar pattern tuning provides unmatched feedback rejection and isolation from ambient noise.



Frequency Response:

Omnidirectional: 20 Hz to 20 kHz

Directional: 50 Hz to 20 kHz

Overload Sound Level: 150 dB SPL at 1% THD
Output Impedance: 600 Ohms +/- 2% balanced, transformerless. Will drive load impedance without distortion at full rated SPL.
Equivalent Acoustic Noise:

Omnidirectional: 25 dBA

Directional: 29 dBA

Power Requirements: 6V to 50V Phantom at 4mA. Voltage below 24V wil result in reduced overload SPL.
Sensitivity: 1.4 mV/Pascal

5/16" x 5/8" x 5/32" (8mm x 16mm x 4mm) excluding cable strain relief.

Cable Length:

5 Feet (wireless configurations)

10 Feet (hardwired configurations)
