Product Overview:

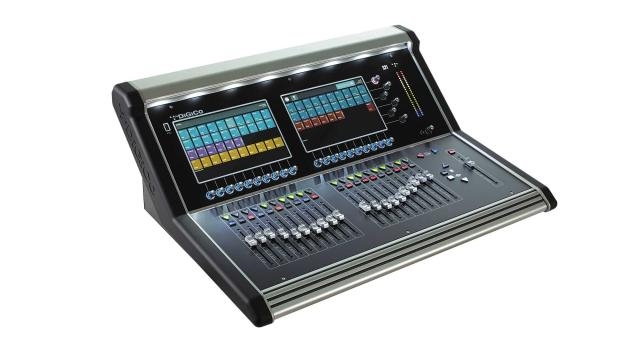

Digital Console with Stealth Digital Processing
No processing resource, DSP sharing limitations or compromise from the FPGA audio processing core plus 96kHz from release, with no processing reduction and a super low latency signal path.
Main Features
- 40 Flexi Input Channels
- 16 Flexi Aux / Sub-Group Busses
- LR Master Bus
- 10 x 8 Full Processing Matrix
- 2 Solo
- 4 (To Follow) Dynamic Equalizers
- 4 Assignable DiGiTuBes
- 4 Assignable Multiband Compressors
- 8 Digital FX
- 16 Assignable Graphic Equalizers
- Optional Waves Integration
- 96kHz Sample Rate
- Optional (with DMI) Optics
Specifications
- 46 busses: 16 x flexi-busses Mono/Stereo (equivalent of 32 DSP busses), Stereo Master (2), Solo busses (2 stereo,
- 4 total), and 10 x 8 Matrix (8)
- 10 x Control Groups
- 1 x Compressor per channel and buss
- 1 x Gate per channel and buss (switchable to ducker, or compressor with side chain access)
- 16 x assignable 32 band Graphic EQs
- 8 x FX engines (reverbs, delays, w/modulation and enhancer)
- 4 x assignable DiGiTuBes
- 4 x assignable Multiband Comps
- User definable Macros
- An extremely high power headphone amplifier with 1/4 inch and mini jack socket
- 96kHz as standard
- 24 mic line inputs
- 12 analogue outs
- 2 AES I/O (mono)
- Word Clock I/O
- 1 GPI and 1 GPO
- DVI out (for an external monitor)
- 2 DMI Card slots (up to 64 I/O per slot)
- 2 Ethernet connections for Networking
- 2 x 24 segment master/solo meters
- Touch sensitive rotaries with integrated switch & HTL
- 2 x multi-touch screens
- 21 x touch sensitive moving faders
- 4 x layers of banks of 10 faders
- Customisable bank and channel layout
- Snapshots
- Integrated USB2 Audio I/O interface for recording and playback of up to 48 channels 40 x Input flex-channels Mono/Stereo (equivalent of 80 DSP channels)
Should you need more information on the product, kindly write your details to us.
